Commercial Modular Cold Room for Storing for Canada

        The cold room from our company has world class .It is very favored by the ice making machine market.
       The complete set of cold room includes 3 main parts:
1. Cold room panels
2. Air cooler
3. Condensing unit
4. Accessories
       This series products feature box type structure with hermetic and semi-hermetic compressor, that is compact and pleasant looking, applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5°C~ -10°C and -10°C~-18°C. They can be used in hotels, restaurants, medicines, agricutural, chemicals industries all other place where cold storage is needed..
      We have 3 compressor brand types for your choice: German bitzer, American Copeland and French Maneurop.
      The features of Shelf Plate Freezer:
A. The Shelf Plate Freezer use Aluminum alloy plate as the evaporator, which heat transfer efficiency can save 40% and the rate of teat transfer is up to 32 times than the evaporator use copper pipe welding in the zinc-plated board.
B. Aluminum alloy plate is not easy to deformation and the surface is smooth so that can be tight with the fish dish and increase the freezing rate. In 3-4 hours it can be frozen (fish plate size is 600 * 400 * 50 G134602).
C. Aluminum alloy flat-panel design with film to strengthen, not only to ensure the strength of flat, but also to improve the heat transfer efficiency. Besides, the Aluminum alloy flat-panel is unique coil design so that the oil return is more smoothly.
D. We use Germany Bitzer compressor which is stable quality, low noise, high efficiency. The energy saving is very prominent. Just S6F-30.2 dual-core compressor is ok. 1.5 tons of fish within 4 hours can reach freeze standard (center temperature of -15 degrees to -18 degrees).
F. freeze storage room use high-pressure foaming technology to ensure the density of the insulation of the freeze room and effectively reduce the energy loss. All doors are opened at the front so that can reduce the installation space and is convenience for cleaning flat easily, and maintenance, etc



Plastic Bags as Making Ice Model for Bag Ice Machine for West Countries

      Bag ice maker machine full name is ice block making machine-plastic bag as model,it only need use plastic bag filling with water to making ice ,it making clean and sanitarty ice ,the ice is edible.It get ice no need waiting for thawing ice.Weight of each ice is designable.
      Our bag ice machine has passed ce certification. The bag ice maker machine has the daily producing capacity of 1 to 5tons.
The bag ice machine belongs to MBBseries:
      The following is the product model:
Model   Ice making capacity  Rated power  Cooling water pump capacity  cooling fan capacity      Weight of Machine
MBB10      1ton/24h              3.92kw           1.5kw                        0.37kw              550kg
MBB20      2tons/24h             7.11kw            1.5kw                        0.55kw              780kg
MBB30      3tons/24h             9.68kw            2.2kw                        0.75kw              950kg
MBB40      4tons/24h             14.6kw            2.2kw                        0.75kw              1150kg
MBB50      5tons/24h             18.84             2.2kw                        1.5kw               1368kg





Two Unique Ice Technologies for 1 ton Plate Ice Making Machine for Maldives

        Our CBFI plate ice machine belongs to fast producing ice making machine which is a new generation product for design and manufacture that combined partical freezing preservation technology.
       The ice making machine adopts two unique ice technologies :flat-plate heat exchange technology and circulating heat gas for ice dropping technology.The new-type ice made via unique ice technology and special ice dropping has solved the limitation of traditional ice by frozen drum, and reaches the international leading level.
We have suceeded in producing ice which could generate ice thickness of only 2mm; for the new-type ice , you can adjust the thickness of ice from 2mm to 30mm according to your needs.
    1 ton plate ice machine ,namely HFY10 has outstanding parameters:
    The ice making capacity :1ton/24h
    The rated power :3.69kw
    Circulating water pump power :0.37kw
    Cooling water pump capacity:1.5kw
    Cooling fan capacity:0.37kw
    The Demension of machine:1900mm*1370mm*1660mm
    The weight of machine:860kg



Irregular Length and Hollow Cylindrical Tube Ices in big market

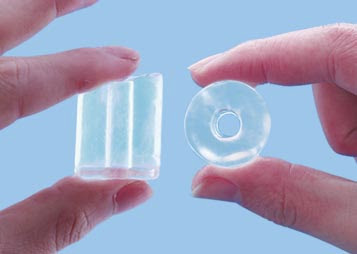

    Tube ice is a kind of hollow cylindrical ice with external diameter28mm、30mm and length 25～42mm. The hole diameter is usually 5～10mm and it can be adjusted according to ice time.

It length is irregular but hollow cylindy.

    Tube ice is thick and transparent with long storage period. It isn't likely to melt in a short time，good air permeability.It is a kind of well distributed vortex water film forming ice system, tube ice machine adopt full stainless steel material, meet eat sanitary standard, forming ice with nice shape. Tube ice maker machine design with cut ice and filter water equipment.

    Ice principle of the tube ice maker machine:

    After the refrigeration system normal working, the water in the bottom water bin take form the outlet transpored to the inlet of the upper water bin by the chilling pump,and then through the water segregator as a screw flow way along the inner wall of the recuperator tube flowing downward with the refrigerant on the surface of recuperator tube doing heat exchange,then the temperature is reduced, parts of water will be formed ice tube in the inner recuperator tube, the water that don't formed ice after fall of temperature will be flowing into the bottom water bin, the water circulating again and again, so the cold energy will loss just a little.

    After a certain time, the water stops circulated,the refrigeration system change into ice dropping model,ice cutting structrue running, the refrigeration on surface of the trcuperator tube will be turned into high pressure refrigerant gas,the heat gas exchange heat with the ice tube in the ice maker and make the ice tube melt little ,then the ice tube without the gravity, slide down into the ice cutting structure,and cut ice tube to small tubes.

High Efficiency Heat Exchange for 1ton Tube Ice Machine for Malaysia

       We have more than 10years experience to research ,design,produce and sell ice making machine.Such as tube ice machine,cube ice machine,block ice machine,flake ice machine,plate ice machine and cold room ,crusher ice machine ...I want to share you TV series ice machines .The ice tube machine had passed  ISO9001,ISO14001and CE certification.So you can be free to learn our ice tube machine with good quality ,good after-sale ,high technology.
       The tube ice machine is widely favored by market, specially for saving space.  The features are very appealing :
    1.Perfect design: adopt 3D simulation asseTVly, compact structure, easy operate and maintain.
    2.Health: Ice adopt SUS304, PE, and aluminium material to process, and adopt big rounded excessive design, everywhere of the machine is easy to clean.
    3. Efficient performance: ice adopt special alloy material and with special heat treatment, make the ice with best thermal performance.
    4.Full automatically: PLC system controls the whole ice process.
    It has production capacity for 1-20tons per day.As follow is 1ton tube ice machine.
    The relative parameters:
    Ice making capacity :1 ton
    Compressor power:4.28kw
    Circulating water pump power :1.1kw
    Cooling water pump capacity:1.5kw
    Cooling fan capacity:0.18kw
    Ice cutter motor:0.75
    Total power:6.14kw
    The bigggest electric quantity per kilo:0.14kw/kg
    The voltage and current and frequency:380/220v;12.3/20.3a;50/60h/z
    The refrigerator:R22 35kg
    High pressure:11-16kg/cm2
    Low pressure:1.3-3kg/cm2
    Environment temperature:25℃

Cold Room for Hotel and bars for Philippine

        Hotels mainly use cold room as ices produced by ice making machine for cooling drinks ,food ,fruits ,and other edible things .
Generally,beverage and food production to consumption must preserved by cooling storage room.
Meats: Animals which are alive their immune system fight bacteria,viruses and which is habitable for animal but after the butchering all of bacteria,viruses find a new life area and they immediately transport to human and where is available situation for them.As you know under effect of cooling they are being inactive hence cooling room is vital important to protect the healthy meat.
To protection to meat heat range must be 0, -1,7 centigrade degree and also cooling storage room include %90-95 humidity.
       Milk and derivates: Cheese can be stored for 5-6 months under condition of 0-5 centigrade degree. Butter can be stored for 5-6 months under condition of 4-10 centigrade degree before the cooling storage room it should exposed the freeze.
       To protect eggs heat range must be -2,5 -1,7 centigrade degree and also cooling storage room include %80-95 humidity.
       Seafood: Generally 5-20 days ,Under the -5 centigrade degree and % 90-95 humidity condition can be stored.Seafood products must cooling after the hunting.



Direct Cooling Ice Block Machine for Syria

       Block ice making machine is divided into direct cooling ice block machine and brine tank ice block machine .
       The features of  ferguson - direct cooling ice block machine
       1.Evaporator special aerospace grade aluminum material used, more durable and ice meet food hygiene requirements;
       2.Automatic melting ice, off the ice, without manual operation, the process simple and quick;
       3.Batch off the ice, off the ice time per batch only about 25 minutes, energy efficient;
       4.Available Forklift bulk shipped to ice freezer, no manual handling, improve efficiency;
       5.Overall modular equipment, transportation, mobile, on-site installation is very simple;
       6.According to different requirements, each ice type ice machine directly, we are tailored to customers;
      7.Ice-type direct containerized block ice machine can be made, 20-foot or 40-foot containers



High Anti-corrosion A3 steel for Ice Block Machine

        Guangzhou Icesource Refrigeration Equipment Co,.LTD produces brink tank ice block machine ,automatic ice block machine,container block ice making machine. Today ,I will tell you about brink tank ice block machine .The brink tank material of this machine is A3 steel.
       The steel thickness of internal surface is 6mm in order to resist the corrosion from salt water. Because the corrosion from outside is relatively small, the steel thickness of external surface is 3mm. In the middle, it is filled with polyurethane foam which has the function of heat preservation and its effect reaches 80mm.
Compared with the stainless steel, advantages of the steel which we treat after three anti-corrosive processes.
       a.Price. With the same weight, the price of stainless steel is approximately 6 times of A3 steel. So with the same amount of money, buying power of 6mm A3 steel is same as 1.2mm stainless steel.
      b.Welding Craft. The welding craft for A3 steel is electric welding. The structure force of electric welding point is much larger than the structure force of steel. When the brine tank is filled up with brine, there has no crack between welding points. Furthermore, the working life of steel which be treated in a special way is longer than 15 years.
While the welding craft for stainless steel is argon arc welding and the structure force of argon arc welding point is much less than the structure force of stainless steel. So when the brine tank is filled up with brine, there may exists cracks between welding points which led to brine leaking and speed up the welding points’ corrosion pace. And the small cracks cannot be found immediately and it must affect the product’s working life in a long term.
       In addition, the welding strength of argon arc welding is not strong enough so that it cannot adapt to temperature change from brine. When brine’s temperature changes a lot in a short time, stainless steel will shrink or expand. Under such structure force changes, the welding point on stainless steel will gradually crack which led the whole brine tank losing working function.



CE Certification and No manpower Control Industrial Ice Cube Machine for Philippines

    Products must have passed some certifications so that many customers love to  buy them.  Except good quality ,good service is also a big factor for choosing  products for customers.

 Every kind of ice machine from our company all have passed CE certification at  different time.Also we have the professional after-sale deparment.

    The ice cube machine not only has good quality ,good service ,but also high  technologies.The outstanding performance is no manpower control ,namely has the  automatic producing process by PLC.

    Technical information

   1.Automatically adjust ice thickness

   2.Automatically match the change of ambient temperature

   3.Automatically supply ice water

   4.Facilitated Condensing pressure steady system



    Working conditions

   Max ambient temperature : +40℃

   Relative humidity  :85％

   Supply water temperature  :16℃

   Power supply :380v/3phrase/50hz

   Refrigeration  : R404a（R22）

   Compressor type: semi-hermetic compressor

   Cooling system :water cooling

   If you're interested in ice cube machine ,we can provide you more technical parameters .

A big Challenge for Commercial Ice Machine in Europe



   A modern ice machine will make a constant supply of clean, fresh ice that will help your customers thoroughly enjoy their beverages which leads to increased ticket size and increased profits for your business. Customers will truly appreciate having fresh clean ice. The right one can make all the difference in your food service business.

    Trying to keep up with your customers' beverage consumption and ice needs can be a challenge. Ice is a vital component of most drinks and the average customer will not enjoy their drink without ice which means they will spend less time in your establishment and that means a smaller check and less money for you. Keeping up with ice consumption and providing clean, clear ice for your customers means choosing the right ice machine for your restaurant, bar or food stand. There are several key factors that can help you find the right one for your business such as:

   1. Space. It is important to choose one that will fit easily into the space you have available in your business. If it takes up too much room or upsets the traffic pattern in the kitchen, this can affect the speed of service and increase accidents. There are machines that are upright and those that are horizontal depending on how much room you have available as well as the capacity you need.

   2. Capacity. You need an ice machine that will make enough ice to fulfill your current needs as well as allowing for future growth. When you shop online you will be able to see what the capacity is for each machine as well as a chart that can help you determine your ice needs if you do not already have a good idea of what they are.

  3. Budget. Of course the ice machine will pay for itself in time, but meanwhile you need an ice machine that you can afford. There are a variety of machines available in a variety of price ranges. Most of them are reasonably priced especially considering how long they will last and the type of value they provide for your business.

   Taking the time to compare models and consider your ice making needs are two important parts of choosing the right commercial grade ice machine for your business. Since ice is a vital part of food service, the importance of this appliance to your business should not be overlooked or understated.

Most Productive and Low Initial Cost Bag of Ice Machine

   Mechanically, Bag of Ice machine have been refined to provide the highest possible reliability. This translates to an improved customer experience and higher profits. Besides focusing on the purchaser's benefits of owning a reliable, cost effective machine, BOI also focuses on providing optional custom features such as customized graphics and styles to promote your particular business. This provides the ice buying public a clean, attractive and efficient machine which reliably delivers ice and water. This translates into repeat business which means higher profits for you! WHY BAG OF ICE OVER OTHER ICE MACHINES? Bag of Ice machines are earth friendly and green. Ice is made on site, stored and dispensed on site and never touched by human hands. Less fossil fuel is used since there are no delivery trucks, and overhead is not affected by rising gas prices. There is no wasted water, no toxic emissions, and no harmful waste products. Ice is freshly made and stored in a controlled environment until needed by customers.



   Ice & Water Vending Machines The XL1900 is the smallest ice machine, most productive, green ice machine on the ice business market. In addition to its low initial cost, the Bag of Ice's XL1900 makes ice on-site and on-demand.at a fraction of the cost of other ice machines. Are you an entrepreneur or small business owner looking for a flexible, affordable and low maintenance way to make money? If so, the Bag of Ice Vending Machine business is the perfect business opportunity for you! We are 100% committed to our clients and their long-term success. From initial site advice, and design options to maximize your ice vending machines visibility to on-going support options and personalized customer service, Bag of Ice knows that your success is our success! Recognizing both the economic advantages of producing ice on-site and the flexibility of machine placement, BOI designs small footprint, high capacity units that compete not only with both the existing ice merchandisers selling delivered ice, but with larger ice vending manufacturers whose machines are the size of a small building. BOI's units not only produce quantities of ice equal to much larger machines, but are also ecologically friendly as they require no costly refrigeration systems. As an innovative company, BOI was the first company to introduce this cost-saving, profit-making feature to the market place.

   Bag of Ice machines are lean yet reliable. Units make and dispense ice with little overhead and maintenance, even when your business is closed. They sell 24-hours-a-day, 7 days a week., offering a full-time return on investment. The Bag of Ice Machine is a vending machine, safe, simple to use, and built to withstand the elements. With the push of a button,bags of fresh ice drop down a chute, time after time. Pricing is easily programmable, adapting to market conditions. The unit can be used and maintained by anyone, regardless of technical ability. This revolutionary product is perfect for entrepreneurs and convenience store owners who want to increase their packaged ice profits without adding additional personnel or headaches. Fresh and Ready when you are, the Bag of Ice Vending Machine is the future of packaged ice. Sells ice and water 24 hours a day 365 days a year with no hassles .expandable Inexpensively Expand to Double the Production .compact: smallest footprint in industry .quickest recovery rate Of Comparable Brands .less expensive Thousands less than Similar Models .highest profit Cost as low as .15? per Bag and 1/2? per Gallon .green No Refrigeration = Lower utility bills .reliable Easy to Operate and Maintain .smartTech Cooling System Recycles the Cooler Air & Water And So much more.....
